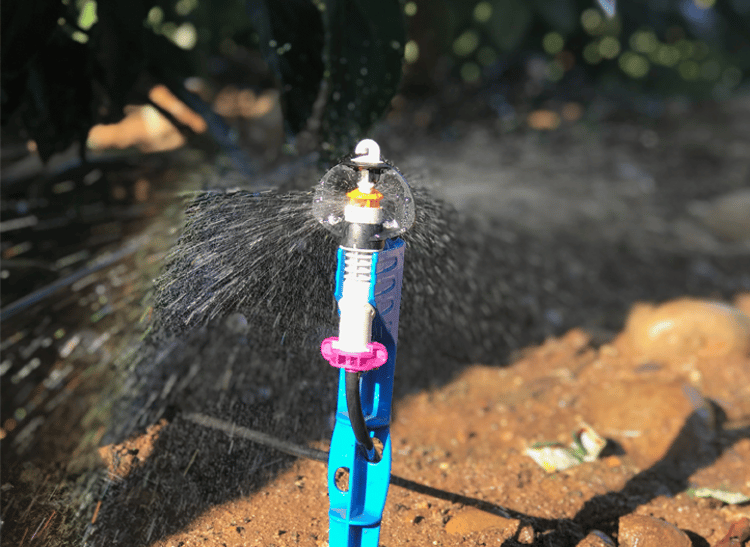

SuperNet™ JET 20

JET IRRIGATION WITH 20 L/H NOZZLE

The SuperNet™ Jet 20 is designed for harsh water, containing large amounts of sand thus causing excessive wear of standard rotating swivel. It’s internal shape, has special design allowing the micro-emitter to work in low flow rate.

Static low flow micro-sprinkler. Specially designed for harsh water, containing large amounts of sand thus causing excessive wear of standard rotating swivel.

Application

  • Irrigation

Pressure

  • Medium pressure
  • Low Pressure

Coverage type

  • Localized

Crop type

  • Orchards

Trajectory angle

  • Medium

Why SuperNet™ JET?

  • 0% flow variation: Uniqueflow regulation mechanism ensures every tree gets an even amount of water and nutrients, no matter the sprinkler's inlet pressure (within specific pressure ranges) - even with uneven topography and long row lengths.
  • Anti-clogging in poor quality water: Flow path 30% larger than any other emitter with an identical flow rate, resists clogging even in harsh and sandy water conditions - ensuring uniform water delivery over the long run.
  • Long-lasting performance against sand: Sand particles in the water and air can stop the sprinkler from working due to excessive wear of the sprinkler rotor.  A specially designed “square hole” upper bearing extends the life of the sprinkler rotor, reducing the need for replacement and repair / for trouble-free performance.
  • Insect protection: Anti-ant mechanism keeps nozzle insect and spider-free, eliminating the need for flushing, and minimizing field repairs and maintenance.
  • In-field resilience: Manufactured from tough plastic materials that can withstand agrochemicals, fertilizers, and prolonged sun exposure.
  • ISO 8026 standards: SuperNet™ micro-sprinklers meet ISO 8026 standards (SI 1406) with production certified by the SII.



Specifications

  • 7 different flow rates: 30, 35, 40, 50, 58, 70, 90 l/h.
  • Recommended working pressure: 1.5 to 4.0 bar
  • 5 types of inlet connectors: Barb, Self-tapping, Press fit, 3/8" male threaded, 1/2" male threaded
  • Upper bearing: Special type of upper bearing (square hole) holds the rotor from spinning.
  • 6 types of static deflectors: 360 degrees (12 jets), 300 degrees (10 Jets), 2x90 (butterfly) (8 jets), 180 degrees (6 jets), 90 degrees (4 jets) and FS flat spray deflector



Specifications

Downloads

Product sheets

Product sheets

Other SuperNet™ models

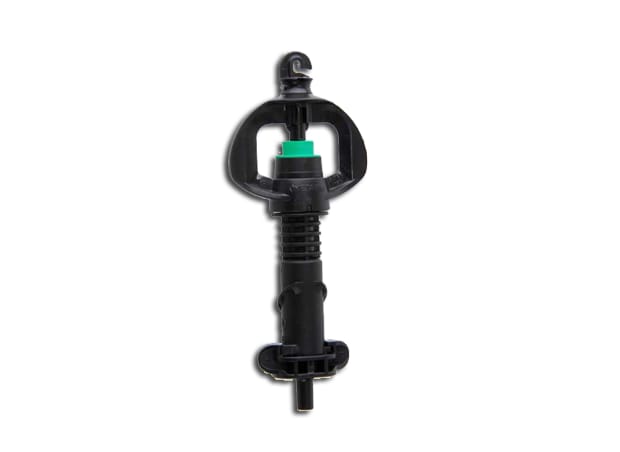

SuperNet™ UD

SuperNet™ UD

SuperNet™ UD flow-regulated “upside down” mounted micro-sprinkler, keeps the ground clear preventing sprinkler damage by field machinery.

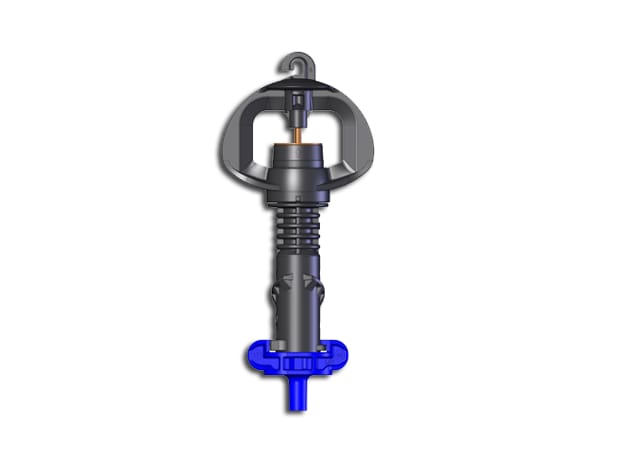

SuperNet™ Dynamic

SuperNet™ Dynamic

SuperNet™ Dynamic flow-regulated sprinkler that enables perfect crop uniformity over areas of varied topography, with low maintenance.
