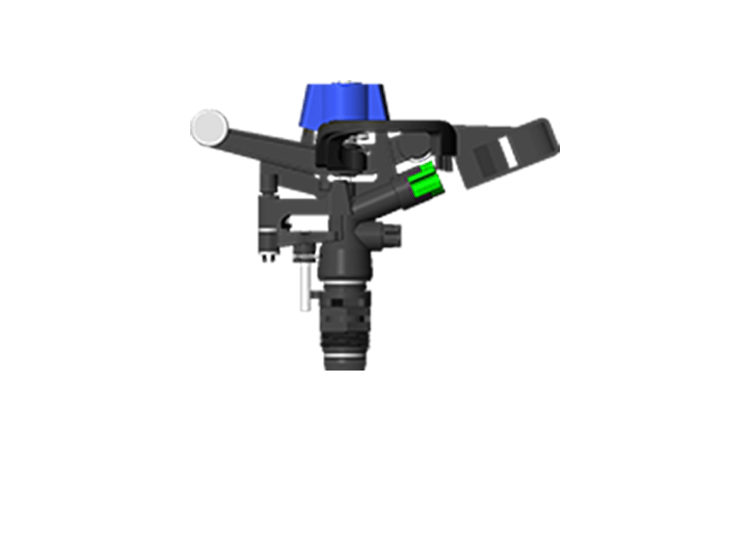

D-Net™ 9575 AA

3/4" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation.

"Ideal sprinkler for edge irrigation"

Application

  • Irrigation

Pressure

  • High
  • Medium pressure

Coverage type

  • Full Coverage: Medium, spacing installation
  • Full Coverage: Large spacing installation

Crop type

  • before

Trajectory angle

  • Normal

Why D-Net™ 9575?

  • High and uniform crop yields: Innovative 3-D diffusion arm ensures the highest level of water distribution uniformity in the market, respective to its flow rate and installation spacing.
  • Saves water: Thanks to D-Net’s outstanding water distribution uniformity, even with wide spacing of up to 15mx18m.
  • Long-lasting performance: Tough UV-protected materials withstand all climate conditions, applied nutrients and chemicals ensuring trouble-free operation over the product’s life.
  • Versatile installation: Installs on solid sets or on removable field stands.
  • Cost-saving maintenance: Special nozzle-key is designed to make cleaning debris from the nozzle simple and quick, even under pressure.



Specifications

  • Variety of nominal flow rates: 1200, 1400, 1600, 1800, 2000 l/h.
  • Nominal flow rates at 3.0 bar pressure
  • Recommended working pressure: 2.0 to 4.0 bar (at the sprinkler head).
  • Water trajectory angle: 24 degrees
  • Inlet connection: 3/4” male thread
  • Color-coded nozzles for easy identification



Specifications

Downloads

Other D-NET™ models

D-NET™ 6550

D-NET™ 6550

D-Net™ 8550 impact sprinklers deliver maximum water distribution uniformity for field crops with spacing up to 15 x 18 meters.

D-NET™ 8550

D-NET™ 8550

D-Net™ 8550 impact sprinklers deliver maximum water distribution uniformity for field crops with spacing up to 15 x 18 meters.

Which stand to pair with D-Net™ 9575 AA?

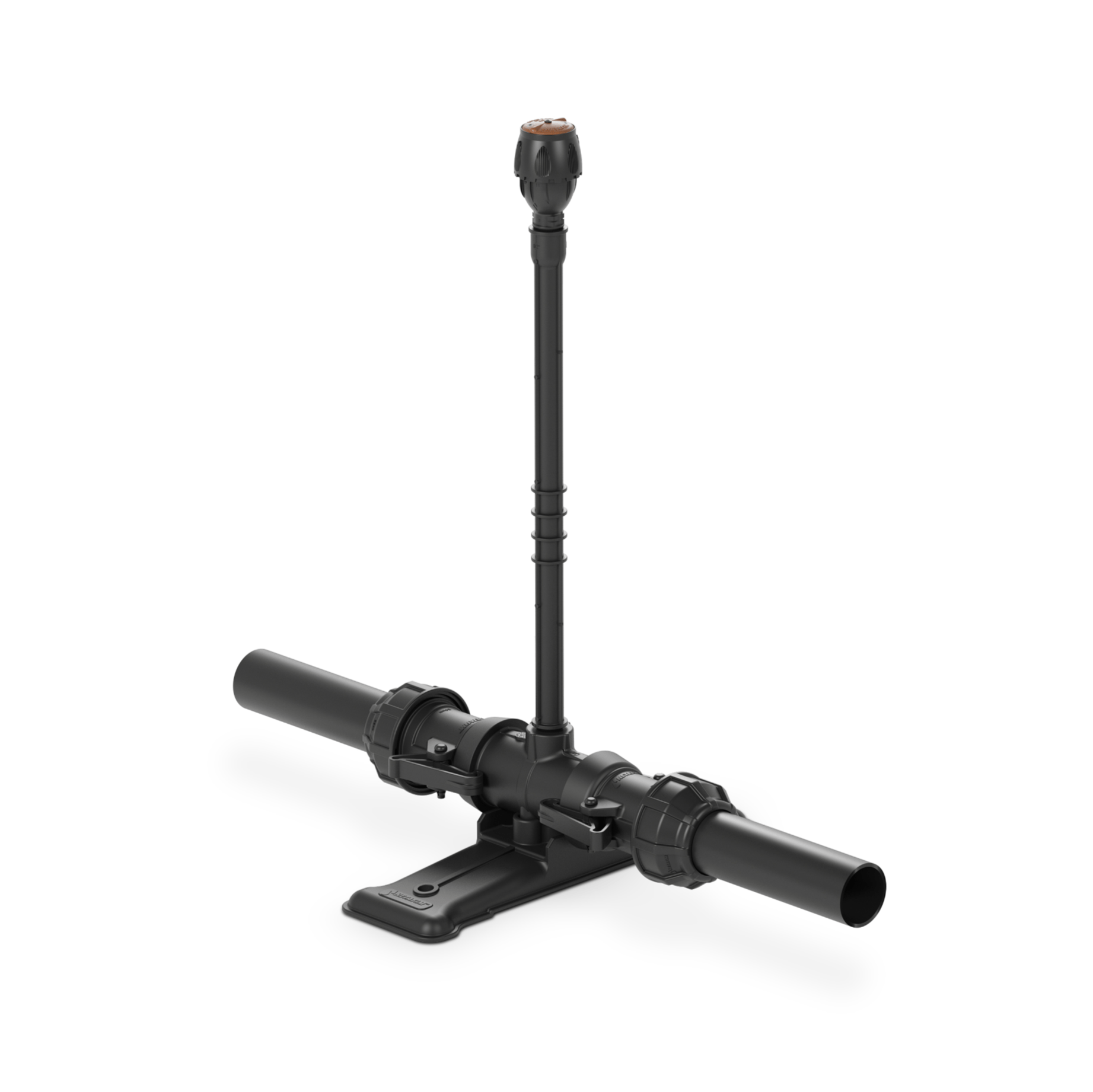

NetaStand™ For Pre-Cut PE Pipes

NetaStand™ For Pre-Cut PE Pipes

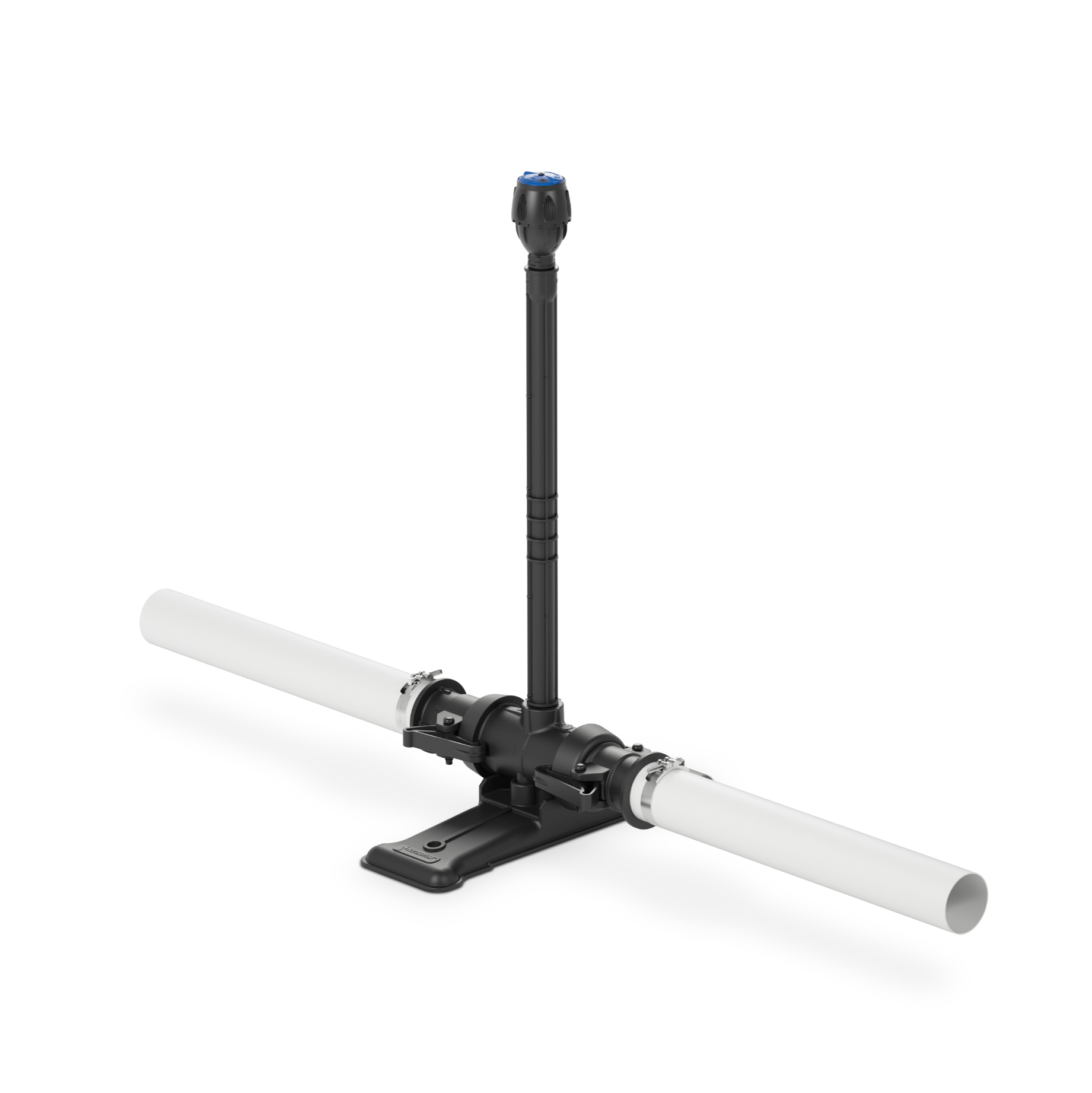

NetaStand™ For Pre-Cut FlexNet™

NetaStand™ For Pre-Cut FlexNet™
