Pulsar™ with VibroNet™

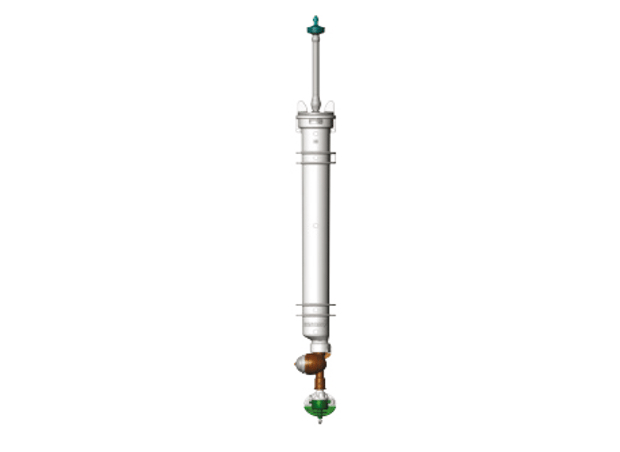

Pulsar™ + VibroNet™

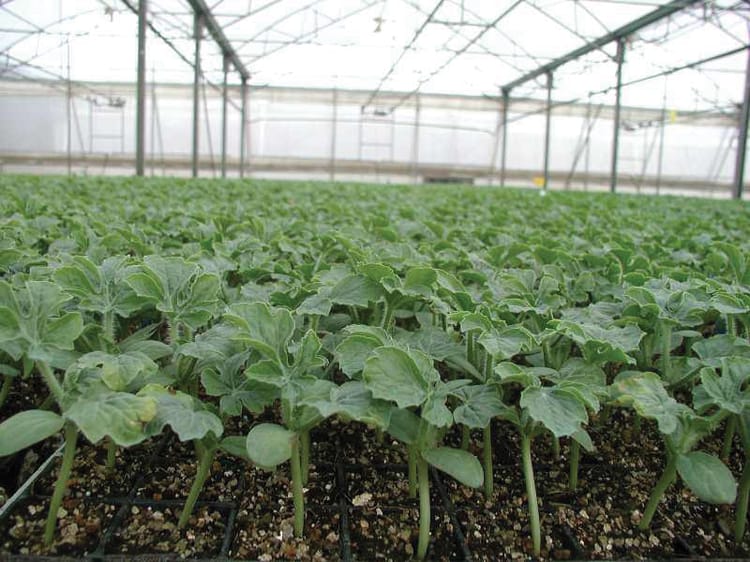

Pressure compansated emitter for irrigation of germinaton table in upside down installation

Application

  • Protected Crops germination

Pressure

  • High

Coverage type

  • Full Coverage: Small spacing installation

Crop type

  • Protected crops

Trajectory angle

  • Medium

Why Pulsar™ + VibroNet™?

  • Water efficiency: Pulsar™ + VibroNet™ design to provide several pulses per minute, according to the selected flow rate, ensure continuous pulse-irrigation over a large area in full coverage with gentle droplets to increase germination efficiency.
    Pulsar™ + VibroNet™ Pro is a Pressure compensated device with static micro-emitter ensures equal amounts of water are delivered over a pressure range, with high uniformity of water distribution along the laterals. It consists of a Pressure Compensated dripper, a micro tube, a Pulsar chamber with an air bag inside, an Anti Drain valve and VibroNet head.
  • Easy installation: Pulsar™ + VibroNet™ is designed for upside-down installation.
  • Long-lasting performance: The product is made of plastic materials resistant to standard nutrients used in agricultural.

Specifications

  • 5 different flow rates: 8, 12, 15, 20 L/H
  • Minimum pressure at the AD valve: 3.5 bar for Anti Darin Valve with purple pin
  • Pressure regulation range: 3.5-4.0
  • Micro-emitter type: VibroNet 50 L/Hl
  • Pulse operation: The pulse on-time and off-time is depended on the dripper flow rate.
  • Installation recommendations: 1.6*1.6 to 2.0*2.0 meters rectangular shape. Upside installation, 1.5 meter above the crop
Specifications

Which Pulsar™ model suits your needs best?

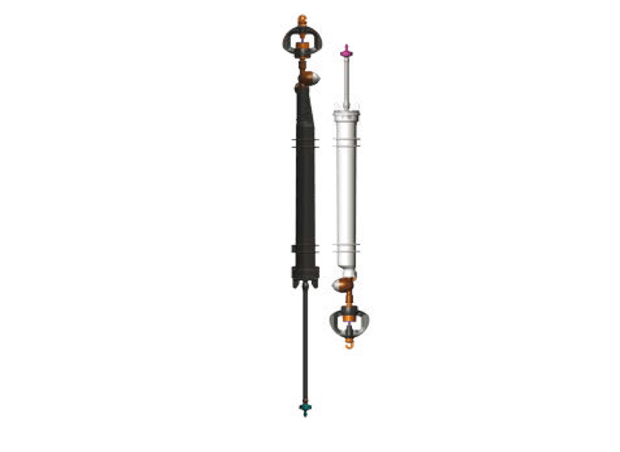

Pulsar™ + GyroNet™

Pulsar™ + GyroNet™

Ideal for frost protection for fruit trees, orchards, deciduous trees, sub-tropic, greens, citrus and berries.

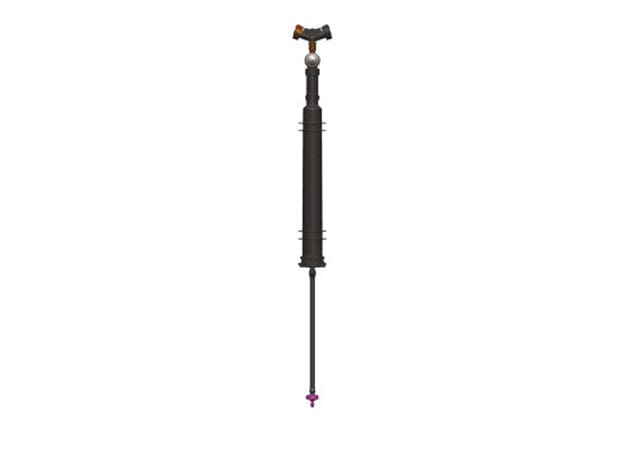

Pulsar™ + StripNet™

Pulsar™ + StripNet™

Ideal for frost protection in vineyards and trellised crops.

Pulsar™ + CoolNet Pro

Pulsar™ + CoolNet Pro

Ideal for cooling and humidification in greenhouses.
